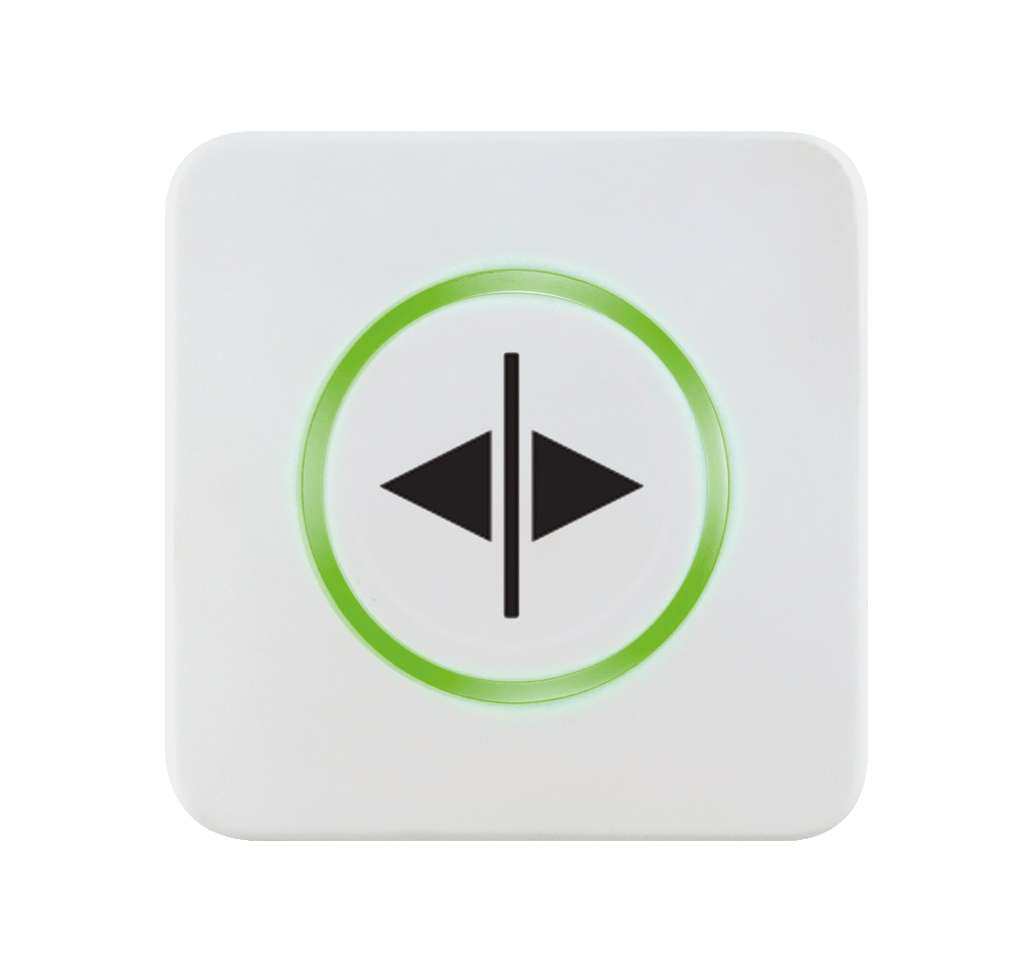

CleanSwitch - Hygienic Contactless Switch (24 VAC/DC) - Open Icon with Optical Feedback

CleanSwitch - Hygienic Contactless Switch (24 VAC/DC) - Open Icon with Optical Feedback


    In stock


    SKU: 86023

    Checkout securely with

    • Order before 1pm and we will usually dispatch same day for next day delivery, stock permitting
    • Have a question about this product? Get in touch with one of our friendly advisers via Live Chat
    • IN2 Access provides FREE UK-based technical support and product training workshops


    Contact-free activation switch for entrances with strict hygiene requirements.

    BBC Bircher's cutting edge CleanSwitch allows contact-free door activation from distances of up to 50cm, making the new CleanSwitch ideal for settings with high hygiene requirements including hospitals and catering environments.

    This robust switch can even be treated with standard cleaning agents and disinfectants without causing damage to its housing or internals. This ultimately prevents common germs and pathogens from spreading in places with high volumes of pedestrian traffic.

    The system has been designed with simplified installation in mind. The CleanSwitch is compatible with all standard flush-mounted boxes and includes state of the art features such as multiple LED colour indication and detection modes, which can be set intuitively without the need for tools.

    CleanSwitch offers two detection modes: the ‘pulse mode’ option, which switches when movement is detected and returns the detector to its initial state after a period of time and the ‘toggle mode’ option, which changes its activation state every time a hand movement is detected.

    Model: White with open icon and optical feedback.

    Technology: Microwave Doppler Radar Frequency 24.125 GHz

    Detection range: 0.1 – 0.5 m

    Detection mode: Pulse mode: sensor detects while hand is moving Toggle mode: first movement on/ second movement off

    Detection speed: Min: 5 Hz or ± 3 cm/s Max: 200 Hz or ± 1.2 m/s

    Supply voltage: 12 – 24 VAC ± 10 % (50 – 60 Hz) 12 – 24 VDC + 20 % / – 10 %

    Max. power consumption: < 1 W (with optical feedback)

    Output: Relay with switch-over contact (free of potential)

    Max. switching voltage/current: (DC): 1A up to 30V, 0.5A up to 60V

    Max. switching voltage/current: (AC): 1A up to 60V, 0.5A up to 125V

    Max. switching power: 30 W (DC) / 60 VA (AC)

    Output hold time: “Relay hold time”: 0.3 s “LED hold time”: 2 s

    Storage / operation temperature: – 20 to + 60 ˚C

    Protection class: IP65 (fixed with 4 screws, smooth surface)

    Dimensions: (mm) 88 x 88 x 38 mm (L x W x H)

    Weight: 55 g

    Materials: ASA / PC
