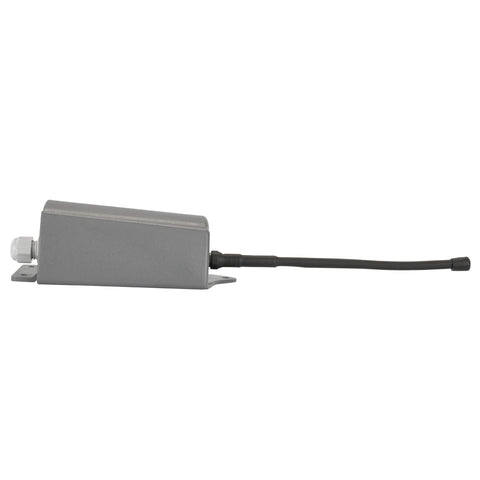

Two Channel Receiver SRM2L - 8255 868MHz
SKU: SRM2L8255
For same-day dispatch*
As door & gate automation becomes more popular throughout the UK, radio wireless systems are now available for all kinds of doors and gates, from garage, roller shutter, sliding gates to swing gates. With security and access control playing a major role within our lives, entrances to our homes become increasingly more important whether it be due to security, safety, ease of access, controlled access, or to enhance the appearance of a home.
Operation and control of door & gate automation can be wide ranging with each system being able to open using a variety of controls: radio transmitter (remote controls), digital keypad, key operation, timed operation, photo-cell/loop detector, audio entry system and video entry system.
The two channel radio receiver SRM2L8255 will allow programming of up to 255 transmitters at 868MHz. The smart control product range uses intelligent coding which is safe, reliable and can not be copied.
Its range of 60m should be more than enough for any application.
Note: Should be used with compatible transmitters, Mars, Terra and Saturn
Technical Specification:
- Supply voltage: 12/24V AC DC
- Max. Power consumption: 65mA(12V) 80mA(24V)
- Outputs: Fixed outputs 2 Relay 1A/30V
- Encryption technology: Hopping code
- Key Encryption: 64 bits
- Detection of errors during transmission 2 CRC bits
- Error detection 255 different codes
- Number of codes: Self learning
Function selection:
- 2 relay Memorises in function of the code
- Latch relays Position 1 programmable
- Certificates ETS300-220/ETS300-683
- Spurious emissions
- Sensitivity
- Range 60m
- Temperature 0 to 70º
- Antenna 17cm / 8,5cm
