Safety edges for automatic gates, doors, public transport and industrial applications

Reliable, tried-and-tested as the best

Electrical safety edges are used for protecting crushing and shearing points on automatic gates, doors, shutters and grills. Profiles of different sizes in combination with various switching devices safely and reliably protect people and objects according to the applicable standards.

Quick and easy to install

The Bircher safe edge is based on the tried-and-tested principle of the contact strip drawn into the rubber profile. These are available both prefabricated from our factory in Oswestry and as system parts for self assembly by the customer. The ingenious structure with separate contact strips and 3 sealing layers can be relied upon for high reliability even in unusual applications and also facilitates retrofitting on site. Offering a next day delivery service on orders placed prior to 13.00 as standard, IN2 Access & Control Ltd. are meeting todays ever increasing demand for safety.

Click-fit!

The easiest possible installation is a feature of ClickLine:  Click and go. No need for time-consuming pushing in from the side. This means even a damaged safety edge can be renewed quickly and effortlessly. The optimally designed profile shape also guarantees the greatest possible switching reliability.

Profile Selection

The calculation model for selecting the most suitable safety edge can be found within the brochure download below. It is important the correct profile is used as influences such as gate operator type, size and speed of your automatic gate or industrial roller shutter etc. and stopping distance all affect the force testing results set out in the standards.

Monitor & Control

We offer one of the most comprehensive range of safety edge monitoring systems which include low cost hard wired solutions, Inductive transmission systems, as well as wireless safety edge systems. A full range of CAT 2 and CAT 3 safety systems are available from stock and comply with EN12978 & EN ISO 13849-1.

Custom size edges and longer cables available on request.

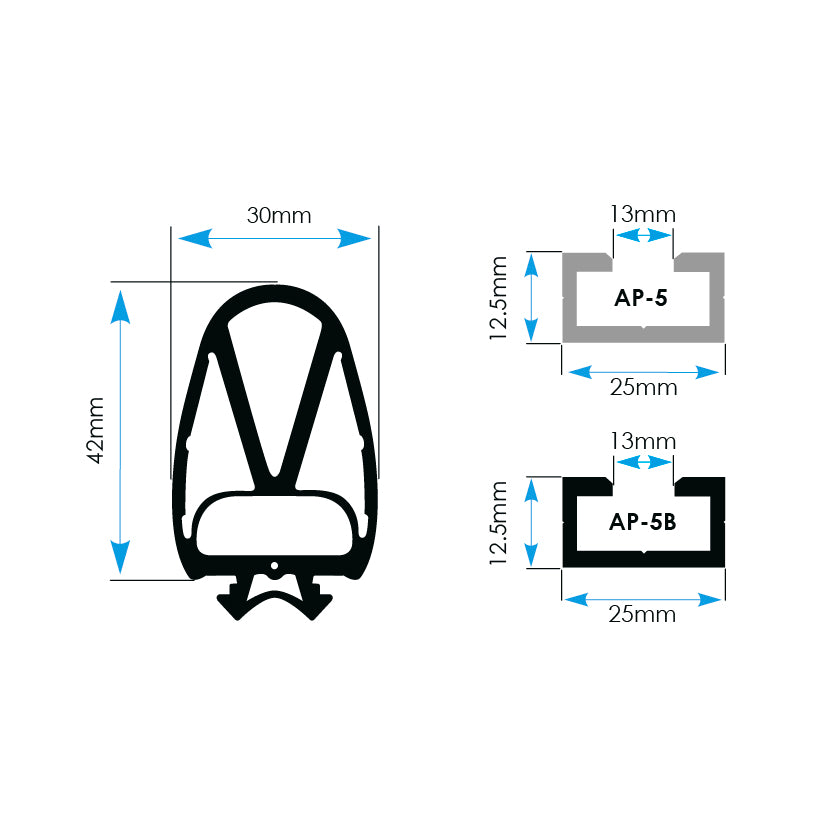

• Rubber Profile: EPE030/042A0V0
• Mounting Rail: AP-5
• Activation Distance: 6 mm
• Switch Point Force: 60N
• Overtravel*
• 250N: 18 mm
• 400N: 20 mm

Please allow 1-2 working days for your safety edge to be assembled and dispatched.
