4 Reasons Installers Are Replacing Ground Loops Without Digging

Designed to complement loops with versatility across all applications, EasyLoop eliminates the need for construction work that can typically costs between £800 and £1,500 per gate or barrier.

EasyLoop eliminates these requirements entirely. In addition to the standard 90° installation, it offers a 45° mode, providing enhanced flexibility across a wide range of applications. This software-controlled feature expands the detection field to 400cm x 600cm, enabling reliable object detection even when the unit is mounted directly onto the barrier housing.

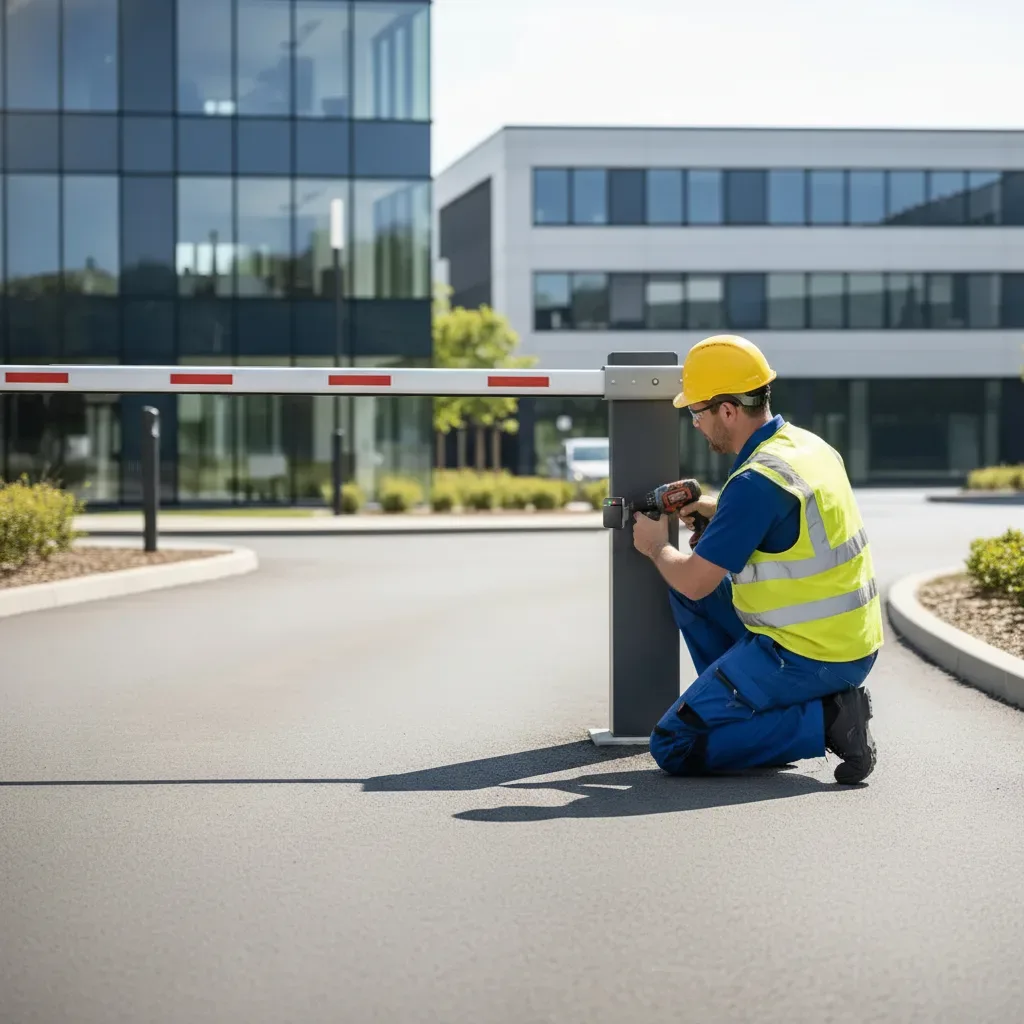

With no need for ground loops, installation is significantly faster, avoids major construction work, and minimises disruption—making it an ideal solution for busy or operationally sensitive sites.

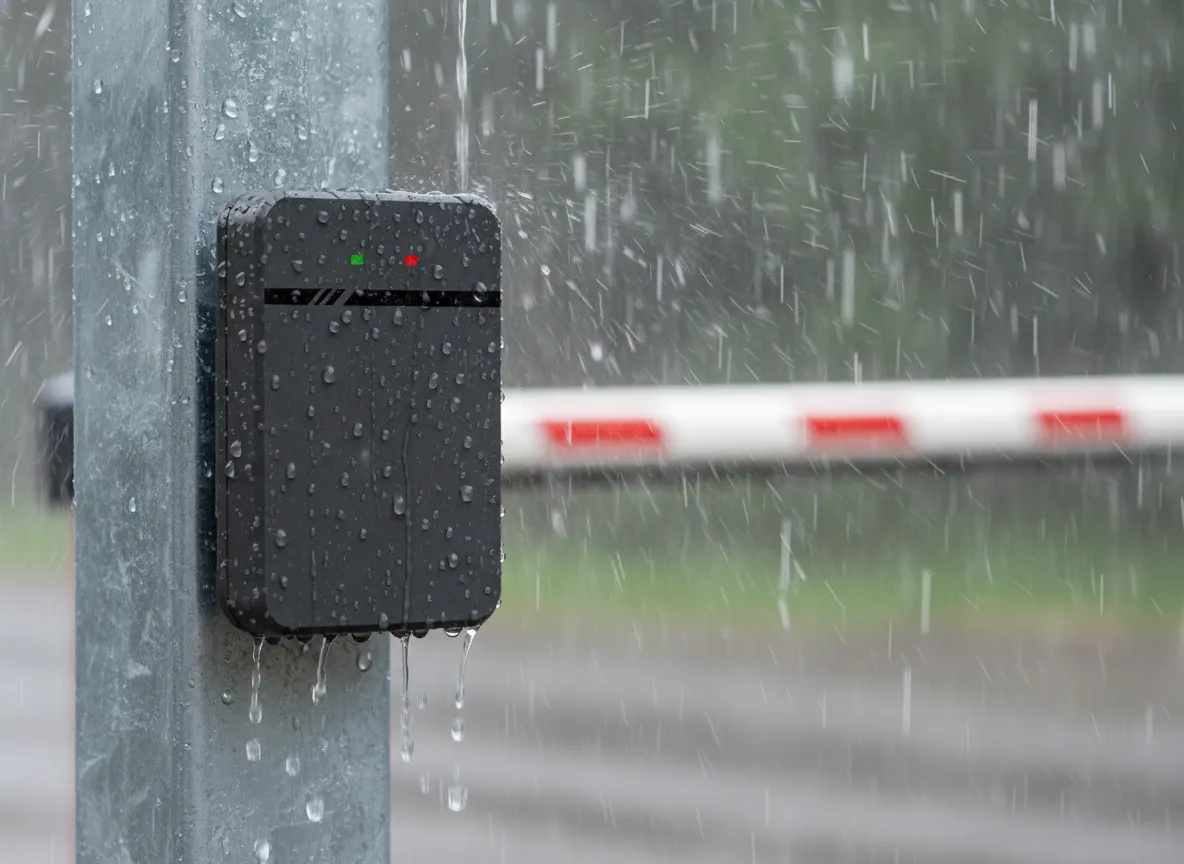

Frequency-Modulated Continuous Wave (FMCW) radar transmits a continuous signal with a varying frequency. By analysing the difference between the transmitted and received signals, it precisely calculates an object’s distance and speed, delivering highly accurate, real-time detection of vehicles, pedestrians, and movement in all weather conditions, year-round.

Integrated uni- and bi-directional recognition further enhances control by preventing tailgating and unauthorised access, ensuring secure and efficient site operation.

EasyLoop utilises advanced radar technology to deliver optimal resolution for barrier and gate applications, ensuring precise and reliable differentiation between vehicles, pedestrians, and surrounding environmental elements such as kerbs and railings.

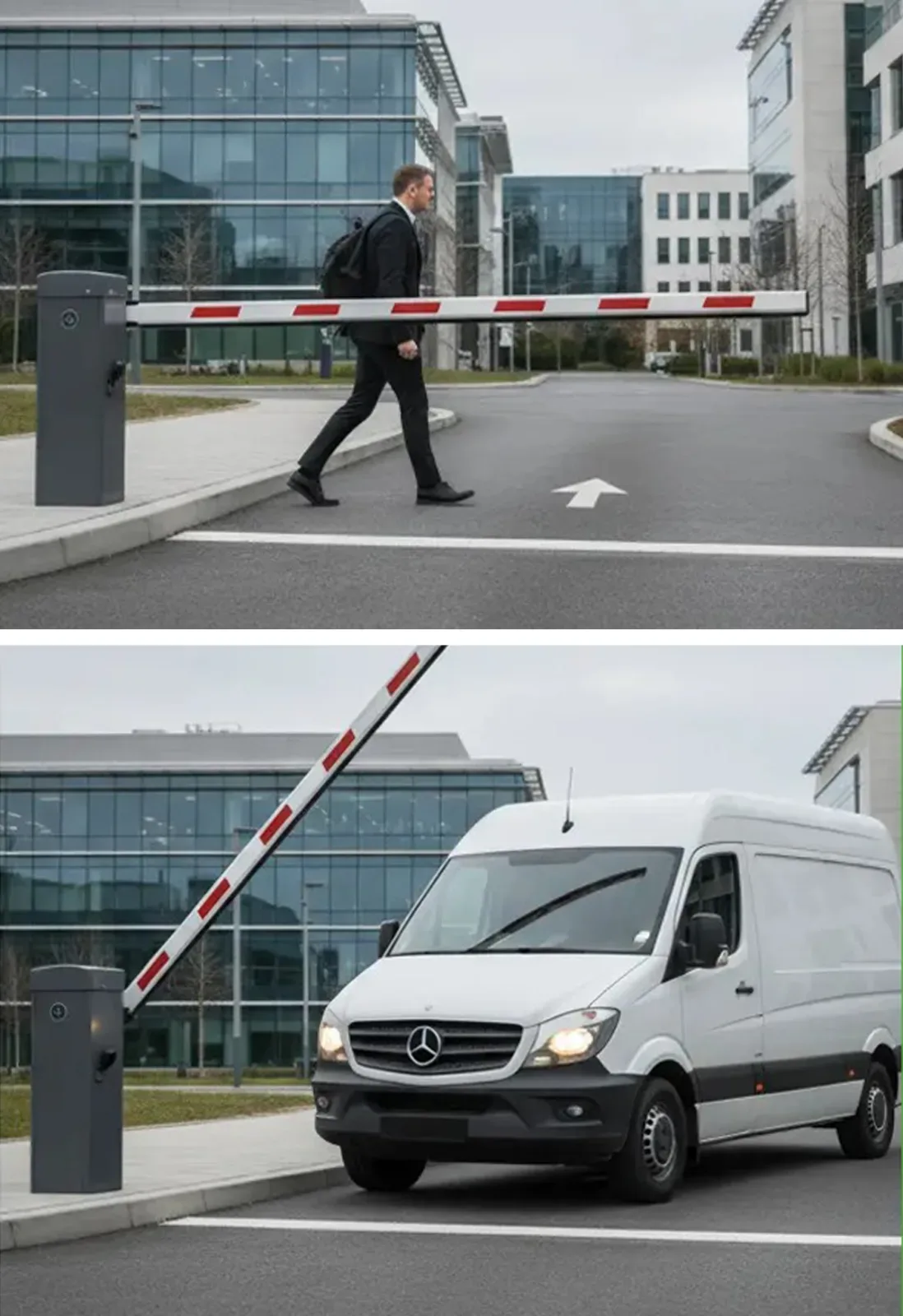

This accuracy significantly reduces false activations. In activation mode, it prevents unwanted triggers caused by passing pedestrians, ensuring consistent and dependable vehicle detection. In presence mode, it enhances safety by holding the barrier arm open if a vehicle or person remains beneath the boom, in full compliance with EN 12453 Type D requirements.

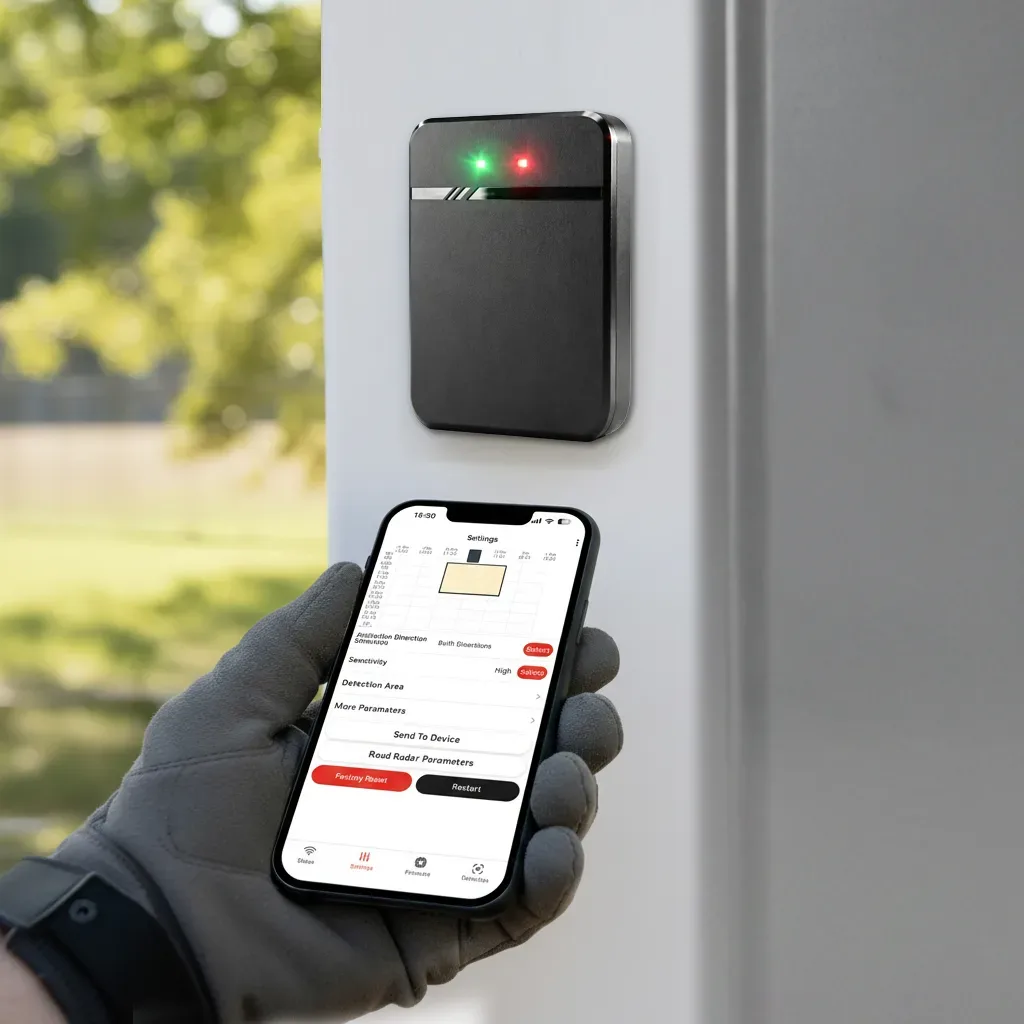

Install your EasyLoop and use the mobile app to quickly configure and customise the detection field, operating mode, and sensitivity to suit your application.

The app also provides direct access to product documentation and allows you to install or update sensor firmware straight from your phone. Step-by-step guidance ensures correct setup, while real-time adjustments enable fast, efficient troubleshooting—keeping installation time to a minimum and performance fully optimised.
