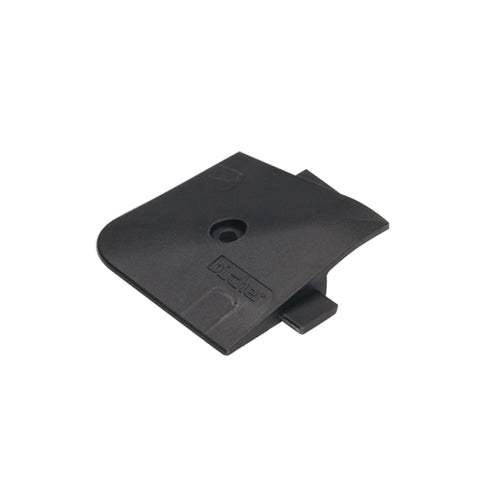

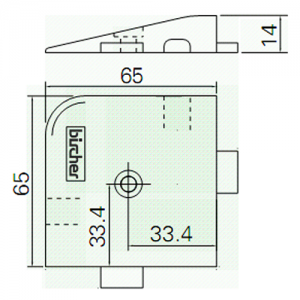

Corner Connector ES-CC Corner Connector ES-CC

Corner Connector ES-CC

SKU: 210973

£8.61 In stock
Minimum Qty Discount Price (each)
Buy 5 + (5% off) £ 8.18
Buy 10 + (10% off) £ 7.75

Product Overview

BBC Bircher Smart Access mat accessories are used for installing and fixing contact mats. These components and the contact mats make it possible to assemble safety contact mat systems according to the EN 1760-1 standard. The ramp rails and corner ...
Order by 1pm
For same-day dispatch*
*stock levels permitting
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

BBC Bircher Smart Access mat accessories are used for installing and fixing contact mats. These components and the contact mats make it possible to assemble safety contact mat systems according to the EN 1760-1 standard. The ramp rails and corner connectors reduce the risk of tripping and, in addition, are able to withstand pneumatic or rubber tyres to the weight specified in the technical data.
The Z-rails are placed on the side facing the machine in order to fix the safety mats down. Then the fixing holes are drilled and the Z-rails screwed into place. The ramp rails are then arranged around the other sides of the safety mat system and screwed down in the same way.
BBC Bircher Smart Access recommends using connection strips to connect the individual mats, in order to prevent dirt from collecting under the safety contact mat system. An air gap of about 1 mm makes it possible to replace an individual mat within a system.
Order Code: ES-CC
    • Colour                                       Black
  • £45 - £90 per night 1
    Material                                   PA6
  • Weight                                     24g
  • Load            Rubber Wheel: 10,000 N
  •                       Pneum Wheel: 20,000 N
