FutureSense - FMCW radar - Black

SKU: 486196

£165.00 In stock

Quantity

Minimum Qty	Discount Price (each)
Buy 5 + (5% off)	£ 156.75
Buy 10 + (10% off)	£ 148.50

Product Overview

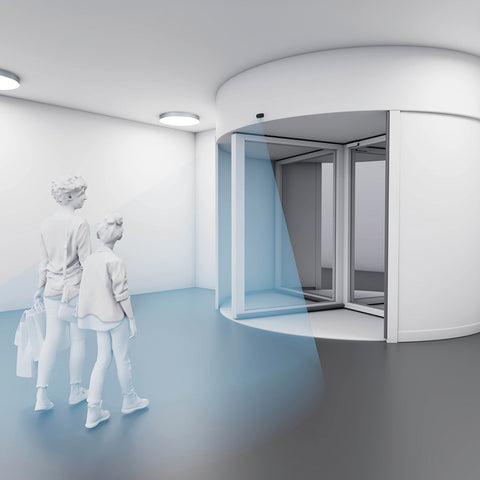

From BBC Bircher Smart Access, FutureSense marks the next generation of smart sensing solutions. The multidimensional FMCW radar sensor redefines automatic door control for swing and revolving doors.

Order by 1pm
For same-day dispatch^*

^*stock levels permitting

FREE Technical Support

Mon - Fri | 8:30am - 5:00pm

Personalised Goods

Laser cutting and engraving services

Description
Specification
Application
Downloads

Benefits of FutureSense include:

State-of-the-art sensing solutions

The FutureSense radar sensor uses 60 GHz FMCW (frequency-modulated continuous wave) technology with advanced tracking to detect objects with high precision. It effectively suppresses cross traffic, improving energy efficiency and extending the door’s lifespan.
Human behaviour recognition

The sensor recognizes human behavior, including approach patterns and intent to access, in order to determine exactly when to initiate door opening. This intelligence helps prevent unnecessary opening and ensures more efficient, reliable door operation.

Easy installation and setup

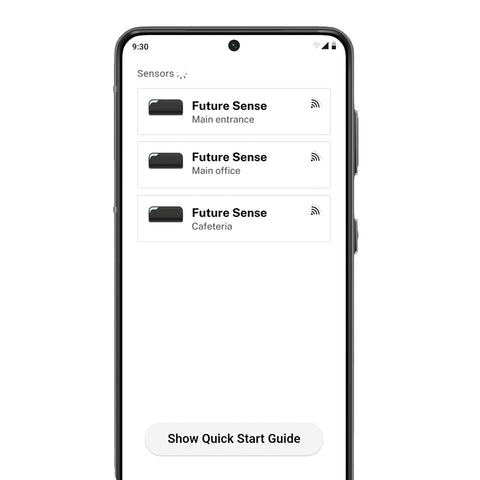

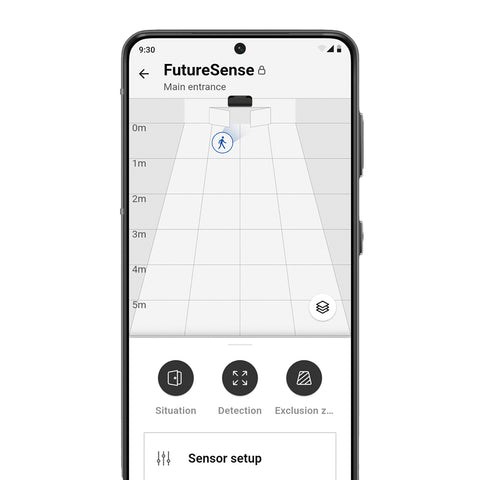

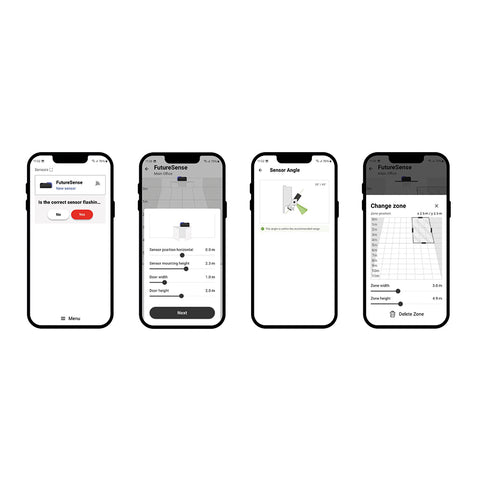

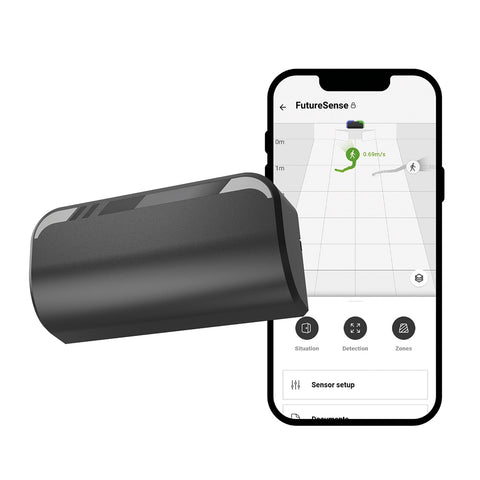

Installation and setup are effortless with the FutureSense app. Thanks to its intuitive design and user guidance, configuration and testing are quick and straightforward. The newly developed antenna design minimizes the need for adjustments, saving time and effort.

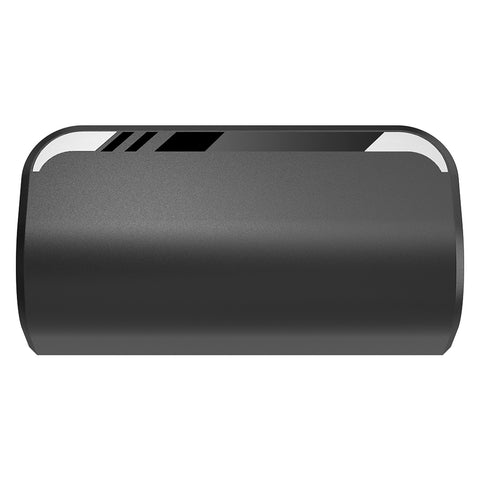

Compact design

To meet current demands for architectural appeal, the FutureSense housing was specifically developed to be compact while combining industrial design with functionality.

Complete solution with SolidSense - Swing door solution for activation and safety

By combining FutureSense as an activation sensor with the SolidSense safety sensor, you can create a complete solution for efficient activation and reliable protection of automatic doors in accordance with EN 16005.

See the Downloads tab for brochure and data sheet for more details and technical information. Trade pricing available.

Mechanical data
Housing material: ABS
Housing colors: Black, white, silver
Dimensions (L × W × D): 105 × 49 × 35 mm
Weight: 55 g

Technical data
Technology: FMCW radar
Radar transmission frequency: 60 Ghz
Field dimensions (W × L): Max. 5.00 × 6.00 m (Configurable via mobile app)
Mounting height: Min. 2.00 m, max. 3.50 m
Configuration interface: App (Android OS, Apple iOS)

Electrical data
Supply voltage: Min. 12 V DC, max. 36 V DC/

Min. 18 V AC, max. 28 V AC
(50 Hz/60 Hz)
Operating current: Max. 120 mA at 24 V
Inrush current: Max. 1 A
Radar output: Solid state relay,
max. 36 V DC/24 V AC,
max. 250 mA
Connection type: 3 m cable with plug connector

Ambient conditions
Ambient temperature: Min. –20 °C, max. +60 °C
Protection class: IP54 (EN 60529)
