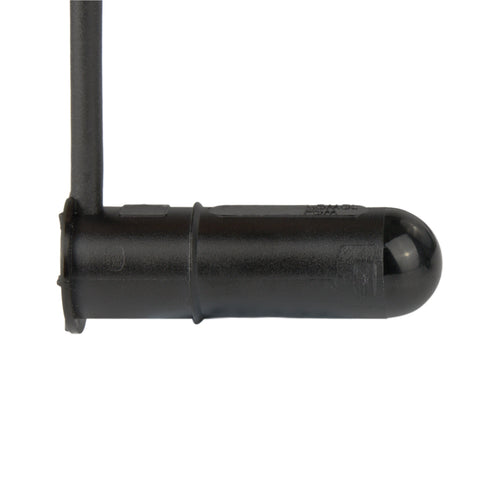

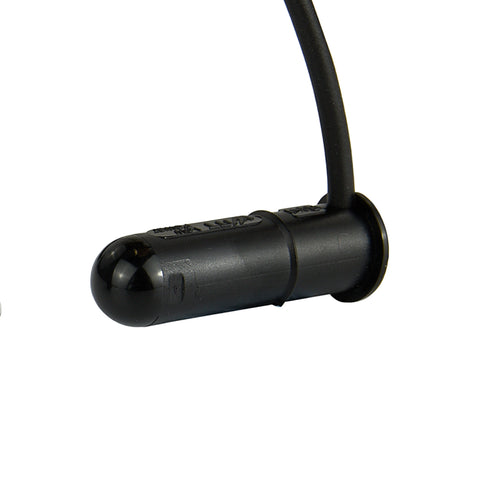

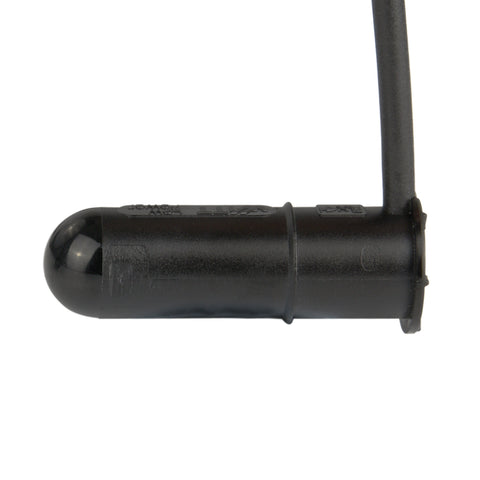

Opto Edge Receiver - 12m

Opto Edge Receiver - 12m

Title

    In stock

    £18.70

    SKU: 315035

    Checkout securely with

    • Order before 1pm and we will usually dispatch same day for next day delivery, stock permitting
    • Have a question about this product? Get in touch with one of our friendly advisers via Live Chat
    • IN2 Access provides FREE UK-based technical support and product training workshops

    Downloads


    The Low-Power-SIGNAL for industrial doors, chooses the output frequency automatically according to the respective conditions. For a lower current consumption in battery mode the output frequency will be reduced to 400Hz. This results in more life time for the batteries. The wireless transmitted safety signals will be processed in the control module which then gives out the required output frequency for the door control. With a direct connection of the Low-Power-SIGNAL to the door control, using the spiral cable, a standard output frequency of typ. 900Hz will be created. This is essential to assure compatibility to all common door controls on the market. In the area of energy efficiency and integrated diagnostic function the Low-Power-SIGNAL sets new benchmarks.

    • 12m range
    • Automatic operating mode recognition spiral cable/battery
    • Extremely low current consumption
    • Integrated diagnostic system with a visual display
    • LED indicator for switching state
    • Larger gate-width possible
    • Less sensitive to wind load and bending
    • High electromagnetic interference immunity
    • Resistant against voltage reversal and short-circuits
    • Regulated transmit power
    • Compatible with all common door controls
    • 3/12VDC
