PrimeScan A Active Infrared sensor safety DIN18650 / EN16005 PrimeScan A Active Infrared sensor safety DIN18650 / EN16005 PrimeScan A Active Infrared sensor safety DIN18650 / EN16005

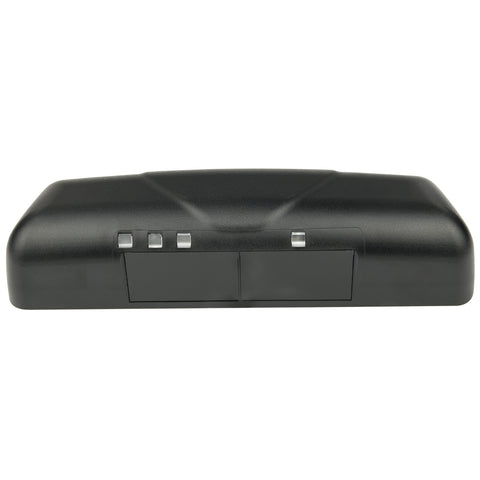

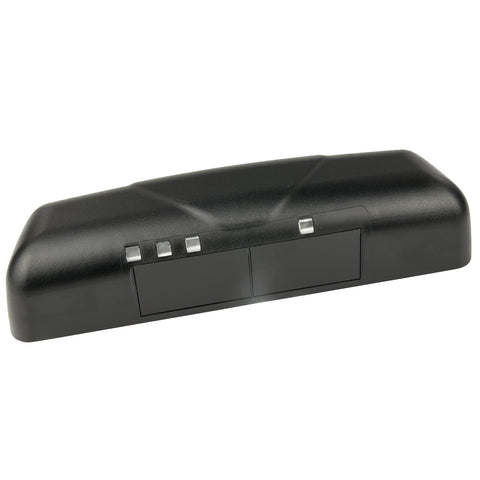

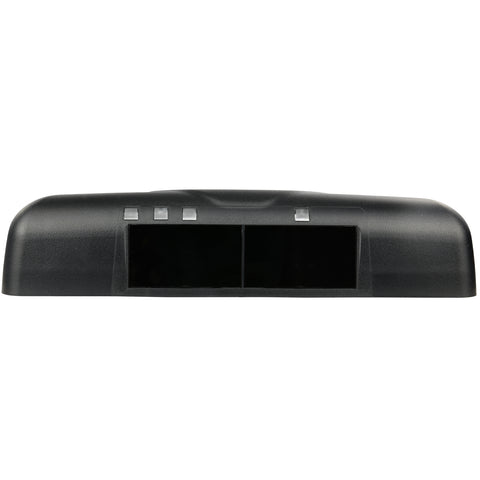

PrimeScan A Active Infrared Sidescreen safety DIN18650 / EN16005

SKU: 260511

£212.22 In stock

Product Overview

The PrimeScan active infrared curtain ensures reliable protection of the area at the side of the door and the secondary closing edges.
Order by 1pm
For same-day dispatch*
*stock levels permitting
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

PrimeScan A protects people in the danger zone of the opening door panel. Together with PrimeTec and PrimeMotion, it forms a complete door safety system for activating and protecting sliding doors.  EN16005 / DIN18650The PrimeScan A active infrared curtain used for person protection is self-monitoring and protects people in the danger zone of the opening door panel. It satisfies the requirements of the EN16005 and DIN18650 standards.
Benefits Include:
  • Active infrared sensor ( 2 rows 18 spots)
  • Simple and straightforward operation via buttons and LCD or remote
  • Precise positioning of the AIR curtain thanks to inclination angle display on a clear scale
  • Automatic recognition of the test input
  • Mounting height up to 4 metres with an AIR field width of 4 metres
  • The AIR curtain replaces the light barrier
  • 5–32 V DC ± 0%
  • 260 × 60 × 48.5 mm (L×W×D)
  • IP54
  • EN16005
  • DIN18650


Certain downloads (such as manuals and wiring diagrams) are only available after logging in with a Trade Account.

CLICK HERE to login or CONTACT US to set up a free Trade Account.

Download Brochure Icon Download Brochure
