Resettable Emergency Door Release (Double Pole)
SKU: CP-EDR-2N
Product Overview

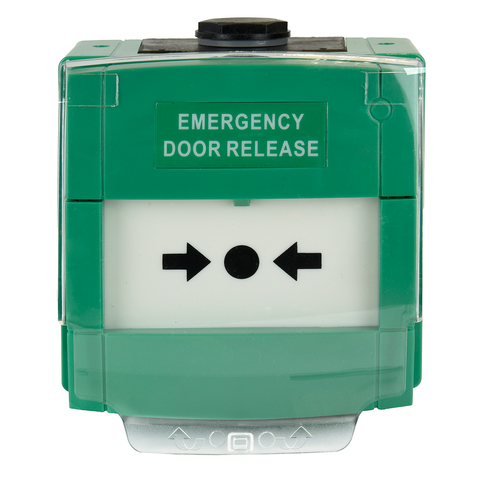

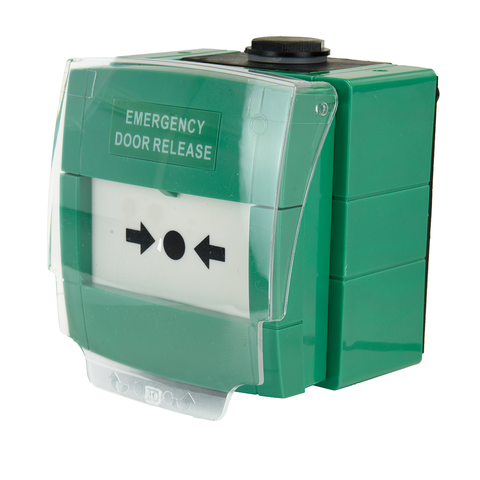

Emergency door release button features a robust IP67-rated weatherproof design, making it suitable for demanding indoor and outdoor environments. It incorporates double-pole double-throw contacts.
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services
The emergency stop station features a robust IP67-rated weatherproof design, making it suitable for demanding indoor and outdoor environments. It incorporates double-pole double-throw (DPDT) contacts, convenient push-fit terminals for fast installation, and can be quickly reset using the supplied key.

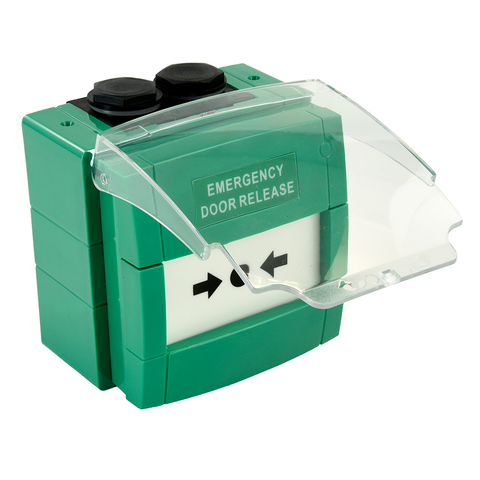

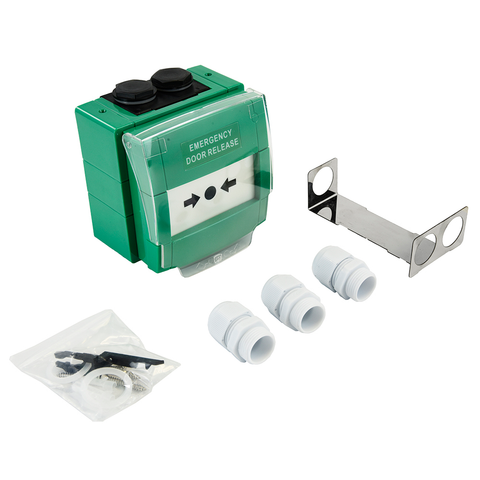

The unit includes a transparent hinged protective cover, integrated cable glands, and 20mm conduit entry points on both the top and bottom for flexible wiring options. Its modern square-edge housing provides a clean, professional appearance.
- Contacts: COM/NO/NC (x2)
- Current rating: 2A @ 30Vdc
- Operating temp: -25°C to 70°C
- IP rated: IP67 weatherproof rating
- Contacts: Double-pole double-throw contacts
-

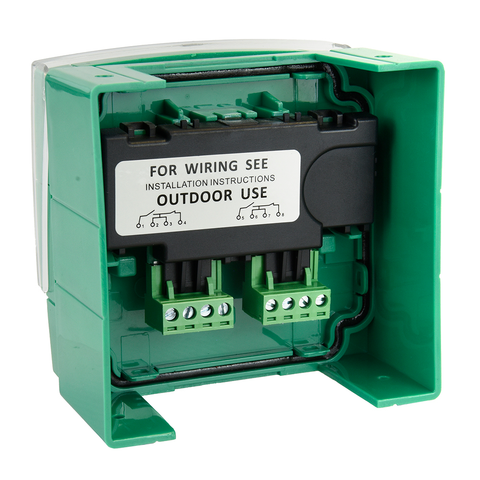

Wiring: Push-fit connectors for easy wiring, 20mm conduit connection points top
& bottom and gable glands included -
Key: Resettable key provided
Height – 95mm
Width – 100mm
Depth – 71mm
Coming soon!
Certain downloads (such as manuals and wiring diagrams) are only available after logging in with a Trade Account.
CLICK HERE to login or CONTACT US to set up a free Trade Account.
Download Data Sheet
