S-Line 11/08 Safety Edge with 2 x 2m Cables
- Order before 1pm and we will usually dispatch same day for next day delivery, stock permitting
- Have a question about this product? Get in touch with one of our friendly advisers via Live Chat
- IN2 Access provides FREE UK-based technical support and product training workshops
Need a custom size? - Email us.
Please allow 1-2 working days for custom sized products to be assembled and dispatched.
S-Line safety edges are used to protect dangerous closing edges at automatic doors and gates, shutters, vehicle doors or in the machinery industry.
Depending on the force and speed of the moving part a suitable rubber profile has to be selected. Bircher Reglomat safety components are developed and certified to meet today’s European Safety Standards.
S-Line consists of various components that together build a safety edge system. Contact strip End pieces, rubber profiles, switching units, aluminium rail Tools and accessories.
The contact strip is made with two conducting elements made of conductive silicon. They are placed with a defined distance. The strip can be terminated with different end pieces, depending on the application. Inserted into the rubber profile and connected to a switching unit, all components make the complete system.
The safety edges can easily and quickly be assembled for a next day delivery. This provides enormous flexibility with regard to the production of different types in various lengths.

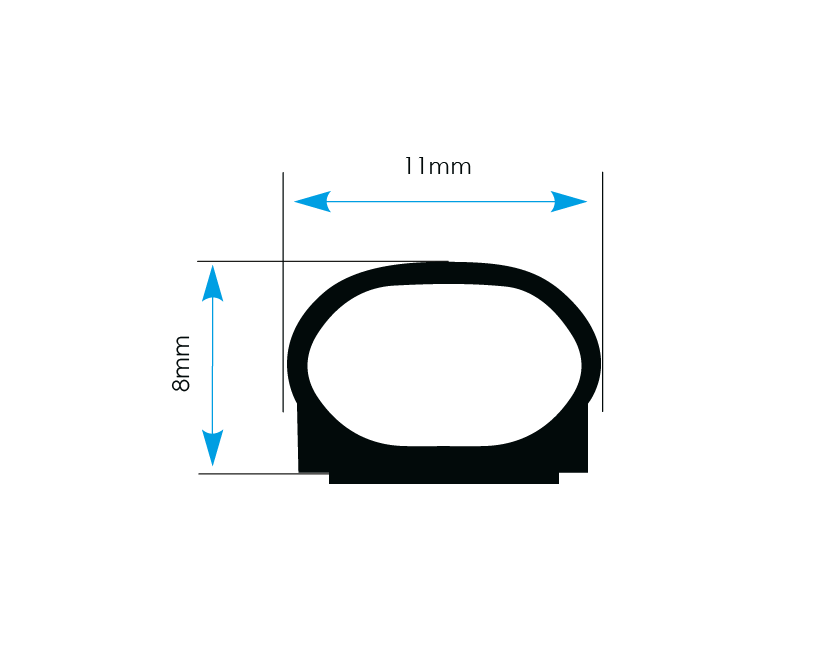

The S-Line range comprises of 3 profile offering consisting of a self adhesive, ultra slim profile measuring 11mm x 8mm, a 16mm x 12mm aluminium channel mounted profile as well as a 16mm x 20mm profile compliant to EN1760-2.
Typical usage for the smallest 2 profiles are on hinge protection applications to ensure reducing gaps on hinge points are protected. The larger of the three profiles can be used on safety applications according to EN1760-2, EN12978 and EN ISO13849.
Bircher Reglomat set the standard when it comes to activation and safety products, providing market leading product in todays ever demanding safety market.
- Rubber Profile: EPE011/008A0W1
- Mounting Rail: None – Self Adhesive
- Activation Distance: 2 mm
- Switch Point Force: <150N
- 250N: 0 mm
Please allow 1-2 working days for your safety edge to be assembled and dispatched.
