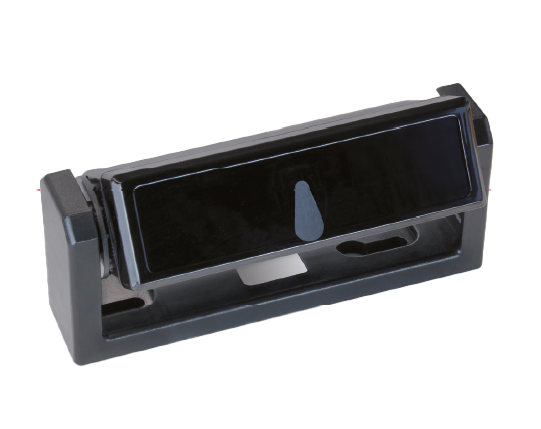

SpotScan AIR Sensor

SpotScan AIR Sensor

SKU: 212174

£241.11 Available on backorder
Minimum Qty Discount Price (each)
Buy 5 + (5% off) £ 229.05
Buy 10 + (10% off) £ 217.00

Product Overview

Active infrared presence detector for automatic doors.
Order by 1pm
For same-day dispatch*
*stock levels permitting
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

SpotScan has been proven as a really versatile all-rounder. In stationary operating mode it provides protection against entrapment at shearing edges of automatic revolving and swing doors. In the door ride-on type of application (mobile operating mode), it is installed as a collision prevention device. With sliding and curved sliding doors SpotScan monitors the main and secondary closing edges. Additionally it features a test input.

Thanks to its compact design and the extensive accessory range the SpotScan can be adapted to suit any type of installation. It is suitable for counting people in confined spaces and picks-up the presence of objects or people on escalators and in elevators.

See downloads tab for brochure with full specifications.


  • Housing material: ABS (black)
  • IP52 (with available cover: IP65)
  • Weight: 130 g
  • Dimensions:
    • Sensor only: 102x45x32 mm
    • With swivel bracket: 123x45x 50 mm
    • With mounting bracket: 140x45x34 mm
  • Type of connection: 5 m cable with plug
  • Supply Voltage: 10–48 V DC / 11–36 V AC, 50/60 Hz
  • Technology: IRED (Active infrared)
  • Type of light: Pulsed light
  • Beams: 1
  • Mounting height:
    • Max. 3200 mm (10.5') for background analysis mode
    • Max. 4500 mm (14.8') for background suppression mode
  • Scanning range adjustment: 1000–3200 mm
  • Detection range: 100–3200 mm stationary, 500-4500 mm mobile
  • Field size at 2.0 m: Approx. 50 x 50 mm
  • Operating mode: Mobile or stationary
  • Response time: Approx. 35 ms



Spotscan uses

Certain downloads (such as manuals and wiring diagrams) are only available after logging in with a Trade Account.

CLICK HERE to login or CONTACT US to set up a free Trade Account.

Download Brochure Icon Download Brochure
