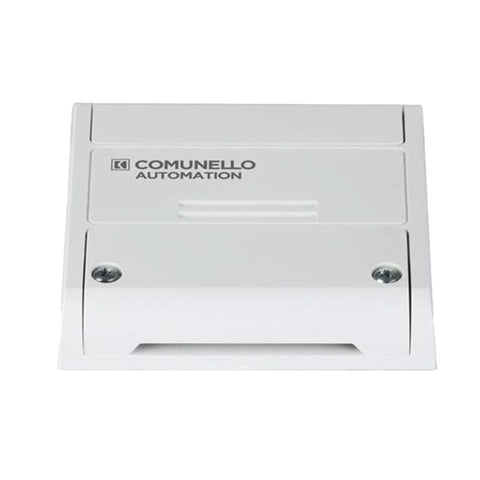

LOCK-24 radio & Wi-Fi control unit for remote automation control (AC-950)
SKU: GMLOCKWFL0G00A
Product Overview
LOCK-24 radio & Wi-Fi control unit for remote automation control (AC-950) by Comunello
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services
Radio and WiFi Control unit for remote automation control. See data sheet in "downloads" tab for more information.
Main features include:
- 433.92MHz radio receiver compatible with Victor rolling code radio controls
- 100 storable remote controls
- WiFi module for output management via One Smart App
- Compatible with Google Home, Alexa and voice commands
- Selectable icon between swing gate, sliding gate or garage door
- Creating scenarios and scheduling commands
- NO contact max 1A , NC contact max 1A
- Two configurable inputs (NO/NC) with ‘automation status’ function
- 12 / 24 Vdc power supply
Technical Information:
Code: GMLOCKWFL0G00A
Description: AC-950 LOCK-24
Power supply: 12 Vdc
Outputs: 1 x NO max 1A / 1 x NO max 1A
Inputs: 2 x NO/NC (configurabili - configured)
No. of programmable transmitters: 100
Radio frequency: 433,92 MHz
WiFi: 2,4 GHz
Remote control: App OneSmart
Voice control: Google Home and Alexa
Degree of protection: IP20
Operating temperature: -20..+55°C
Dimension: 80mm x 80mm x 16mm
Certain downloads (such as manuals and wiring diagrams) are only available after logging in with a Trade Account.
CLICK HERE to login or CONTACT US to set up a free Trade Account.
Download Data Sheet
