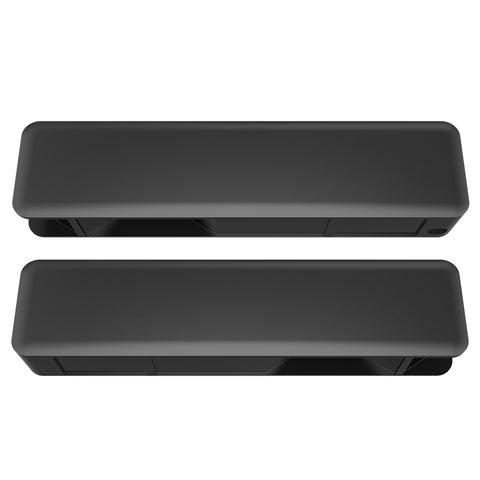

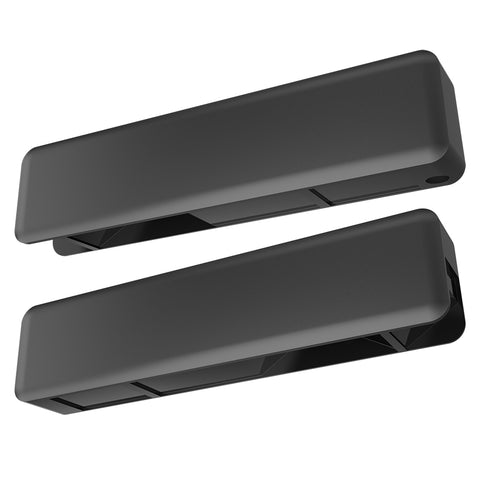

SolidSense 3M Kit - solid state scanner - Black
SKU: 481221
Product Overview
From BBC Bircher Smart Access, SolidSense reliably protects people from injury. This sensor combines maximum safety for automatic doors in demanding situations in accordance with EN16005. This SKU is for a kit with two sensors.
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services
SolidSense gives complete protection for people against potential sources of danger such as crushing, shearing and impact points is critical. This SKU is for a kit with two sensors. Benefits include:
-
Safety according EN16005

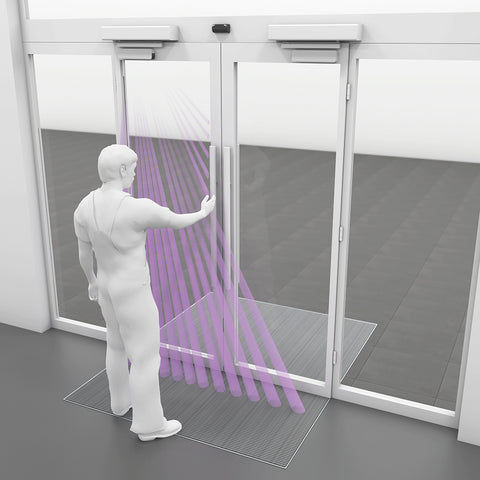

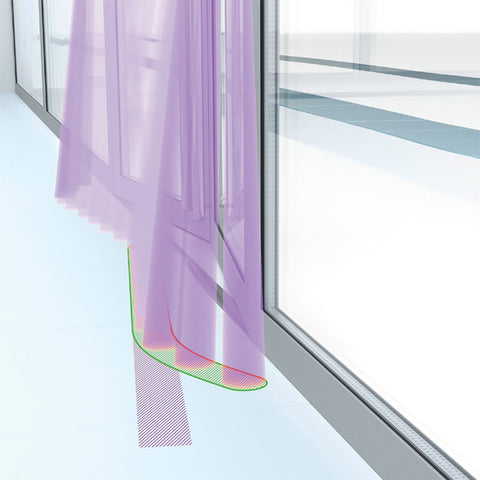

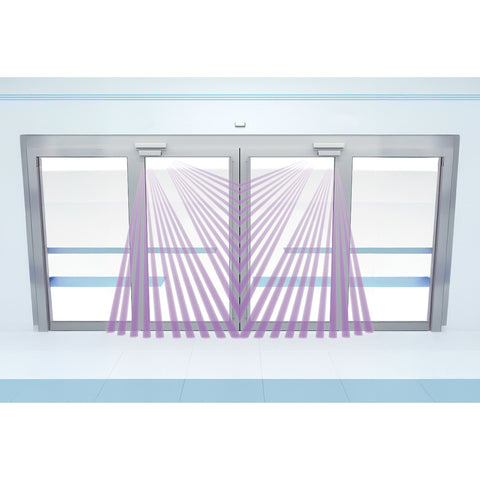

SolidSense offers extensive coverage of the entire door leaf, including the secondary closing edge, ensuring safety at both the main and secondary closing edge, meeting the requirements of EN 16005.
-
Easy setup
A reduced number of parameters and intuitive gestures make complete and safe commissioning particularly easy for installers.
-
Reliable operation
Suitable for all types of flooring, regardless of ambient light and reflections. The function is in no way impaired by environmental influences.
-
Aesthetic integration
The simple housing design blends perfectly into a wide range of door design concepts and is available in three different colors.
Complete solution with FutureSense - Swing door solution for activation and safety
By combining FutureSense as an activation sensor with the SolidSense safety sensor, you can create a complete solution for efficient activation and reliable protection of automatic doors in accordance with EN 16005.
See the Downloads tab for brochure and data sheet for more details and technical information. Trade pricing available.
Mechanical Data
Housing and window material: PC (polycarbonate)
Housing color: this set black (also available in silver and white, contact us for details)
Dimensions (H × W × D): 61 × 255 × 39 mm
Weight: approx. 280 g (per module)
Degree of protection: IP65
Technological Data
Sensor technology: solid state scanner with time-of-flight technology
Infrared wave length: 850 nm
Mounting height: see data sheet
Performance level: Cat. 2, PL d (SIL 2)
Electrical Data
Supply voltage: 24 V DC ±20 %
Supply current: max. 200 mA (per module)
Power consumption: 4.8 W (per module)
Test input: high level 15 – 30 V DC / low level ≤ 2 V DC
Response time: ≤ 50 ms at mounting height ≤ 2500 mm / ≤ 80 ms at mounting height > 2500 mm
Output: solid state relays, NO, max. 30 V DC, max. 60 mA
Connection: 2.5 m cable, 8-pole, with plug connector
Ambient conditions
Ambient temperature: min. –30 °C, max. +60 °C
Relative humidity: 25 % – 95 %, non-condensing
