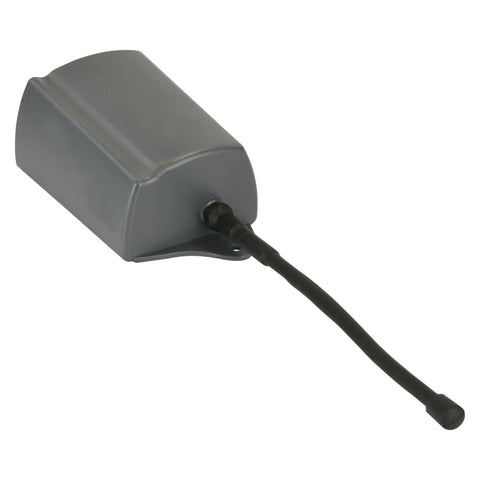

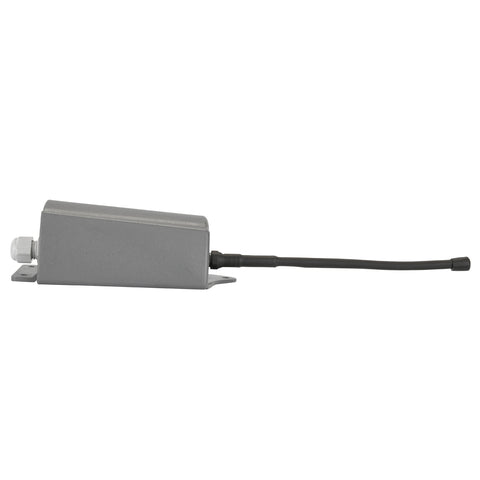

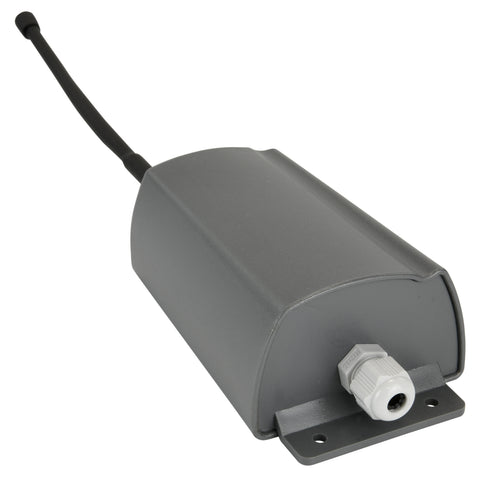

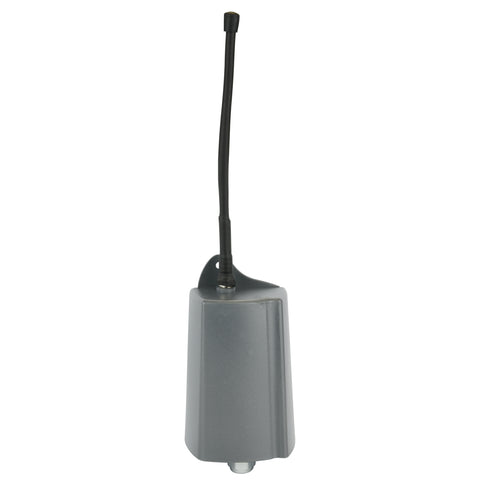

Single Channel Receiver SRM1L

SKU: 00000

£0.00 In stock

Checkout securely with

Product Overview

As door & gate automation becomes more popular throughout the UK,  radio wireless systems are now available for all kinds of doors and  gates, from garage, roller shutter, sliding gates to swing gates. With security and access control playing ...
Order by 1pm
For same-day dispatch*
*stock levels permitting
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

As door & gate automation becomes more popular throughout the UK,  radio wireless systems are now available for all kinds of doors and  gates, from garage, roller shutter, sliding gates to swing gates.

With security and access control playing a major role within our lives, entrances to our homes become increasingly more important whether it be due to security, safety, ease of access, controlled access, or to enhance the appearance of a home.

Operation and control of door & gate automation can be wide ranging with each system being able to open using a variety of controls: radio transmitter (remote controls), digital keypad, key operation, timed operation, photo-cell/loop detector, audio entry system and video entry system.

The single channel radio receiver SRM1L41000 will allow programming of up to 1000 transmitters. The smart control product range uses intelligent coding which is safe, reliable and can not be copied. Its range of 60m should be more than enough for any application.

These units are available in both 433Mhz and 868Mhz as well as single and dual output varieties.

Note: Should be used with compatible transmitters, Mars, Terra and Saturn

Technical Specification:

  • Supply voltage: 12/24V AC DC
  • Max. Power consumption: 65mA(12V) 80mA(24V)
  • Outputs: Fixed outputs 1 Relay 1A/30V
  • Available codes:  2.097.152.281 Millions
  • Encryption technology: Hopping code
  • Key Encryption: 64 bits
  • Detection of errors during transmission 2 CRC bits
  • Error detection 1000 different codes
  • Number of codes: Self learning

Function selection:

  • 1 relay Memorises in function of the code
  • Latch relays Position 1 programmable
  • Certificates ETS300-220/ETS300-683
  • Spurious emissions
  • Sensitivity
  • Range 60m
  • Temperature 0 to 70º
  • Antenna 17cm / 8,5cm
