Traffic Light Controller for 3-Way 2-Lens Control Traffic Light Controller for 3-Way 2-Lens Control Traffic Light Controller for 3-Way 2-Lens Control

Traffic Light Controller for 3-Way 2-Lens Control

SKU: CP-DC3SEM2LI

£713.30 Available on backorder
Minimum Qty Discount Price (each)
Buy 5 + (5% off) £ 677.64
Buy 10 + (10% off) £ 641.97

Product Overview

Control board for two traffic lights with three lenses/lights
Order by 1pm
For same-day dispatch*
*stock levels permitting
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

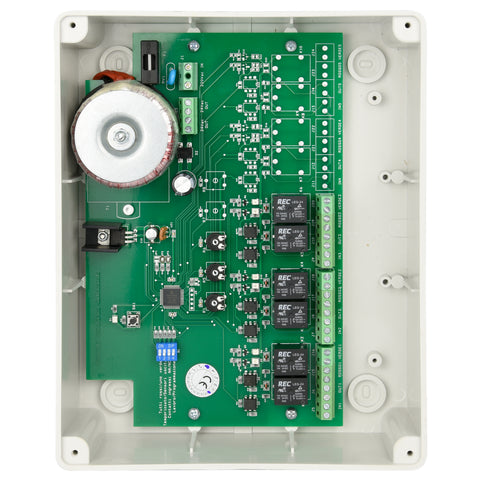

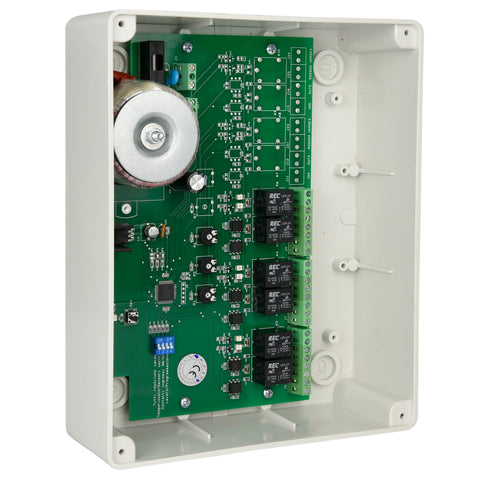

The DC3SEM2L universal electronic control unit has been devised for the management of three traffic lights with two lenses, in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

Specifications:

  • Power supply: 230 Vac
  • Operating temperature: -20 °C / +50 °C
  • Absorption max supported by relays (10 A) using 24 V: 240 W
  • Absorption max supported by relays (10 A) using 230 V traffic lights: 2300 W
  • Inputs dedicated to inbound traffic sensors, opto-isolated, settable for NC or NO contacts
  • Inputs dedicated to outbound traffic sensors, opto-isolated, settable for NC or NO contacts
  • Trimmer to adjust the green light time for each channel / semaphore (between 10 seconds and 2 minutes)
  • Memorization of the sequence of arrivals during operation
  • Filter on 24 Vac input for sensors in vehicle entry positions and in vehicle exit positions
  • 24 Vac outputs for sensor power supply (Max 400mA)

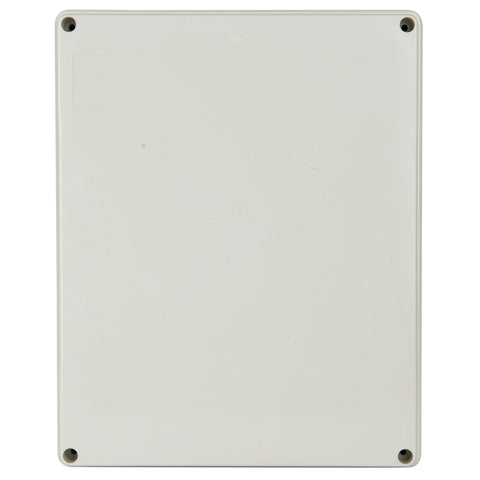

  • IP container protection (ABS V-0): IP 56
  • size: 237 x 183 x 96 mm

NOTE: Installation manual and more technical details available for download when logged in with a free Trade Account.  CONTACT US for access.

Coming soon!

Certain downloads (such as manuals and wiring diagrams) are only available after logging in with a Trade Account.

CLICK HERE to login or CONTACT US to set up a free Trade Account.

Data Sheet Icon Download Data Sheet
